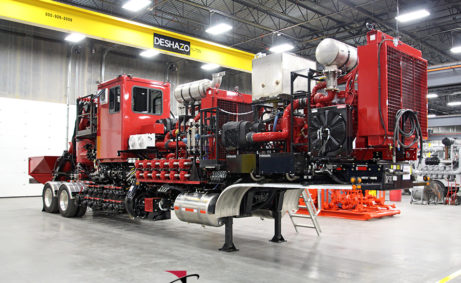

Frac Equipment / Stimulation Equipment

UE Manufacturing has custom designed Fracturing Equipment / stimulation equipment which have both land and offshore capabilities.

Current designs are available up to 3000 horsepower and can be modified to meet customer preferences for engines, transmissions and pump manufacturer. Control systems include analog, digital and remote options.

Upon customer request, we have the ability to install the controls of their choice. While UEM has engineered fleet designs ranging from 850-3000 horsepower, we also have worked with customers to meet their specific needs they may have.

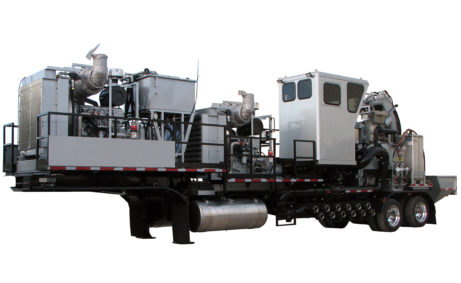

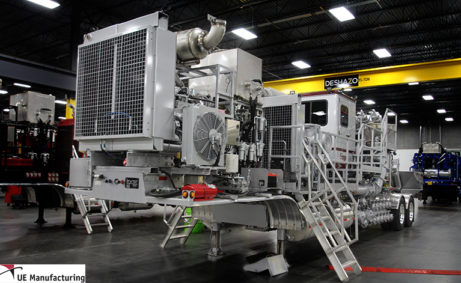

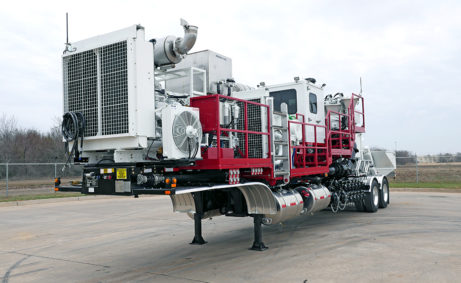

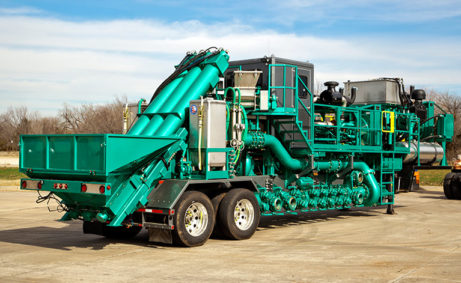

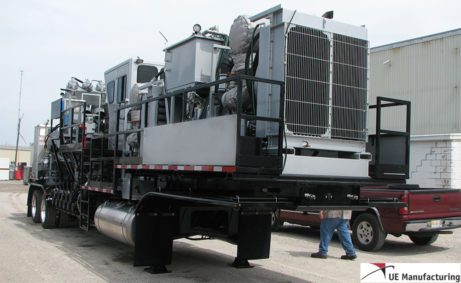

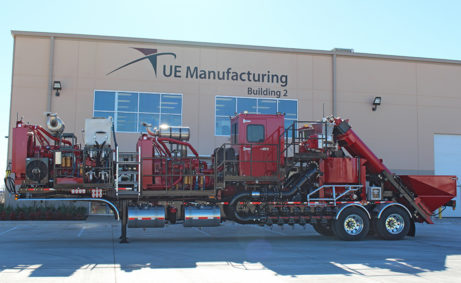

Blenders

The UEM blender is trailer mounted and a self contained unit for towing via customer supplied tractor.

Our fracturing blenders are suitable for use in operations with proppant loaded water, oil, and inhibited acids.  They’re designed and tested to operate in ambient temperatures from -40 degrees up to 120 degrees Fahrenheit.

  • Trailer Mounted
  • Rates up to 150 BPM
  • Hydraulic & Mechanical Drive Systems
  • 75 Cubic Feet of Hopper Capacity
  • Up To 20 Pound Proppant Input Rate
  • Dual 8″ Turbine Style Flow Meters / Magnetic Pick-Up
  • Thermo Scientific Nuclear Type Densitometer
  • Built in Liquid Additive Pumps
  • Dry Additive Hopper
  • Carbon Steel Piping 150 PSI

Transfer Trailers

The UEM 550 Transfer Trailer is suitable for towing behind customer supplied tractor. It sits on a dual axle goose neck trailer and capable of providing up to 550 horsepower.

  • DDC Series 60 Diesel Engine
  • Twin Disc PTO
  • Vertical Radiator with Mechanical Fan Drive
  • 14″ Suction Manifold
  • 10″ Discharge Manifold
  • Control Panel with Magnetic Flow Meter & 12-24 VDC Converter
  • Display Panel

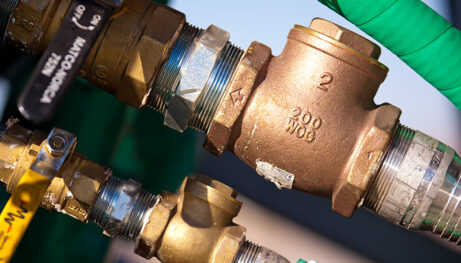

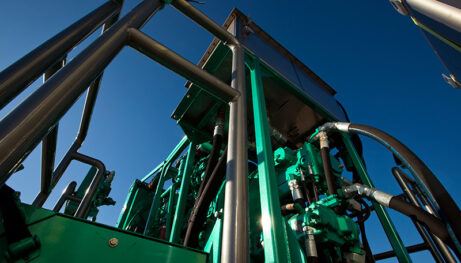

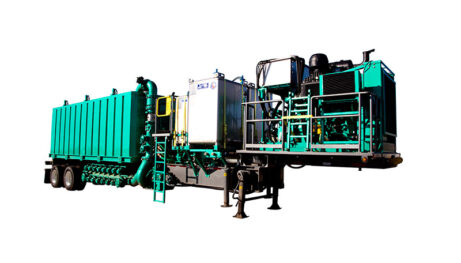

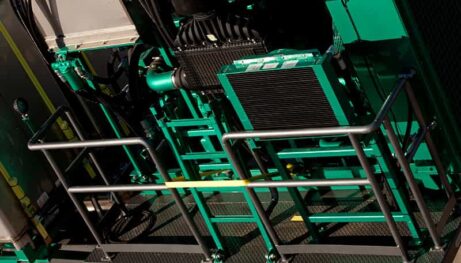

Hydration Trailer

The UEM Hydration Trailer has been engineered and designed with capability of clean water rates up to 100BPM. The tank size allows gelling agents hydration time prior to delivery to blender units.

Gel hydration helps reduce the customer costs of tank cleaning and disposal fees by using the appropriate amount of gel during a treatment.

  • 630 BHP @ 1800 RPM Diesel Engine
  • Centrifugal Suction Pump
  • 10′ Turbine Flow Meter
  • Viscometer with 1’’ Recirculation Line
  • 200 Barrel Capacity
  • (2) Chemical Additive Pumps and Flow Meters
  • (2) 500 Gallon Polymer Stainless Steel Gel Tanks
  • 40 Gallon Diesel Flush System
  • 12’’ Suction and Discharge Manifolds
  • Digital / Analog Control System

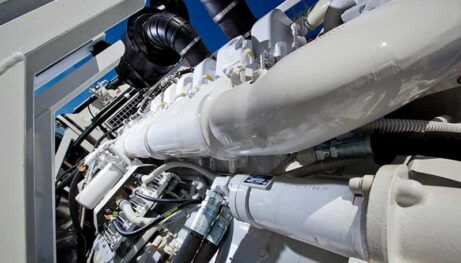

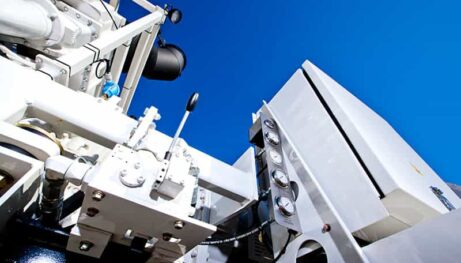

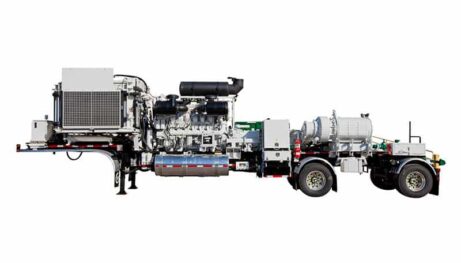

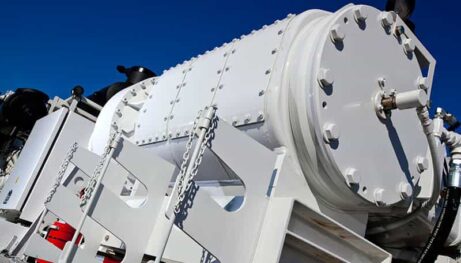

Frac Pumps

The UEM product line for frac pumps offers the equipment to be trailer, skid or chassis mounted.

We have worked engine, transmission and pump arrangements within these options to optimize weight requirements while adhering to DOT and any other regulations as they may pertain.

  • Onshore & Offshore Applications Available
  • UEM Digital, Analog & Remote Controls or Customer Supplied Options
  • Triplex or Quintuplex Pump Options
  • Custom Design Available
  • Emissions Certified
  • Licensed Distributor for Major Components
